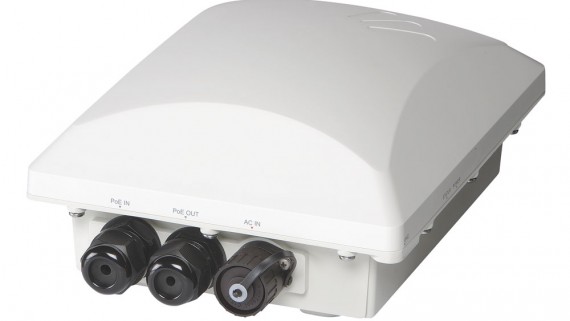

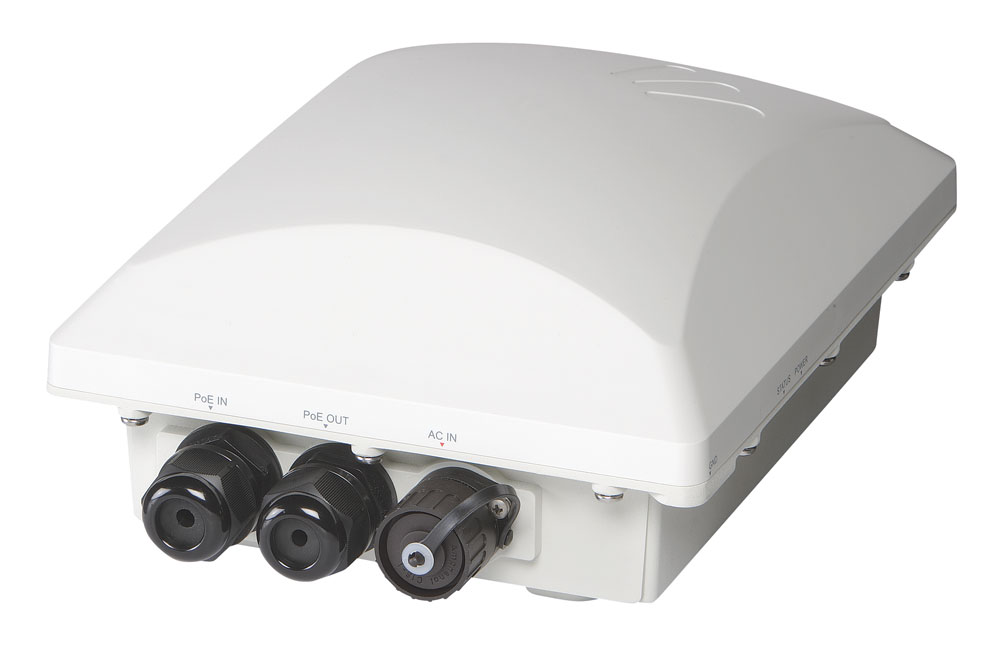

ZoneFlex 7782-N Outdoor Access Point
-
Ruckus Wireless ZoneFlex 7782-N Outdoor Access Point
Carrier-class 2.4/5GHz 802.11n Access Point with an integrated 30º narrow beam antenna for unprecedented performance in high-density applications
The Ruckus ZoneFlex™ 7782-N is the industry’s first 802.11n outdoor access point featuring a 30° narrow beam antenna array along with BeamFlex™ technology to deliver additional signal gain. The ZF 7782-N was specifically designed to address the needs of very high-density deployments such as would be found around stadiums, arenas, airports, etc.
These venues are characterized by tens of thousands of people in close proximity to each other and most are carrying mobile data devices of some sort. These are amongst the most challenging wireless environments imaginable and are ideally suited to Wi-Fi technology. High-density best practices usually call for a large number of AP’s to get the needed capacity, but care must be taken to limit co-channel interference. The narrow beam antenna in the ZF 7782-N is able to focus RF energy into a specific area, which greatly reduces the opportunity for interference and increases network performance.
The ZF 7782-N also features a very minimal form factor with integrated antennas which is essential in many deployments including light poles (aka street furniture) in major metro areas. These are great locations for outdoor AP deployment, but the entity that owns the poles will usually require that any AP be as unobtrusive as possible. The ZF 7782-N in one of the most compact units in the industry.
Other key ZF 7782-N capabilities include support for up to 500 concurrent users, integrated GPS receiver for location based services, continuous spectrum analysis, hotspot 2.0 support for seamless roaming, SmartMesh™ wireless backhaul, ChannelFly™ support, PoE-out to power collocated small cells and much more.
The ZoneFlex 7782-N can be deployed as a standalone AP and managed individually, or centrally managed by the ZoneDirector™ WLAN controller or through the SmartCell Gateway™ 200, which also provides connectivity into the mobile packet core.
Avantajları
Ultra high density client supportSupport for over 500 concurrent clients
High speed client performance with integrated 30º narrow beam arrayPatented BeamFlex technology limits client contention to maximize user performance
Light, slim design for easy deploymentCompact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation
Onboard GPS receiver for location servicesIntegrated GPS receiver automatically populates each AP with GPS coordinates
Predictive channel selection for increased capacity and reduced interferenceChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels
Integrated AC and PoE power in and outEasy installation on light poles and the ability to directly power devices such as small cells
Unmatched Wi-Fi capacity and reliabilityBeamFlex delivers up to 7 dB of added signal gain and up to 15dB of interference mitigation
Enhanced receive capabilitiesSupport for signal polarization diversity with maximal ratio combining (MRC) ensures reliable connectivity for mobile devices
Integrated Smart Mesh backhaulResilient and high speed mesh links between APs reduce the need for expensive fiber and microwave alternatives to simplify deployment
-
Başlıca Özellikler
* when used with the ZoneDirector Smart WLAN controller
-
ZoneFlex 7782-N
Performans ve Desteklenen Kapasite:Eşzamanlı Kullanıcı:Access Point Başına maksimum 500 ClientEşzamanlı Ses Bağlantısı:Access Point Başına maksimum 30 BağlantıAnten Özellikleri:Anten:1 Anten BiçimiFiziksel Anten Kazancı:9 dBi (2.4 GHz); 15 dBi (5 GHz)SINR RX Gain:3 dB'ye KadarInterference Mitigation:15 dB'ye KadarMinimum RX Hassasiyeti:-100 dBm(2.4 GHz); -95 dBm (5 GHz)Wi-Fi Özellikleri:Standartlar:802.11a/b/g/n
2.4 GHz ve 5GHz eş zamanlı çalışmaDesteklenen Veri İletişimi Hızları:802.11n: 6.5 Mbps – 130 Mbps (20MHz) – 6.5 Mbps – 300Mbps (40MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9, 6Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9, 6MbpsBSSID Tanımlama:Radio Başına 32′ye kadar (Access Point başına toplam 64)Radyo Zincirleri:2 x 2:2RF Güç Çıkışı:26 dBm (2.4 GHz)
24 dBm (5 GHz)Gelişmiş Radio Özellikleri:Narrow Beam Antenna Technology
TxBF, LDPC, and ML receiver
GPS
Continuous Spectrum AnalysisFrekans Bandı:IEEE 802.11n: 2.4 – 2.484 GHz & 5.15 – 5.85 GHz
IEEE 802.11a: 5.15 – 5.875 GHz
IEEE 802.11b: 2.4 – 2.484 GHzKablosuz Ağ Güvenliği:WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
ZoneDirector ile birlikte 802.1X Authentication yapabilme. harici RADIUS, LDAP veya Active Directory için destekSertifikalar:ABD, Avrupa, Avustralya, Brezilya, Kanada, Çin, Mısır, HongKong, Hindistan, Japonya, Kore, Malezya, Meksika, Yeni Zelanda, Filipinler, Singapur, Güney Afrika, Tayvan, Tayland, BAE, Vietnam
WEEE/RoHS uyumlu
Wi-Fi birliği sertifikasyonu (Wi-Fi onaylı)Yönetim:Kurulum Opsiyonları:Web Kullanıcı arabirimi (HTTP / S)
CLI (Telnet / SSH), SNMP v1, 2, 3
TR-069 vis FlexMasterYapılandırma:Bağımsız (Tek başına yönetim)
FlexMaster™ ile yönetim
ZoneDirector ile yönetim
Managed by SmartCell Gateway (SCG 200)Otomatik Access Point Yazılım Güncellemesi:FTP veya TFTP, uzaktan otomatik güncellemeFiziksel Özellikler:Güç:POE
AC Girişi (100-250 VAC 50/60 Hz)Fiziksel Ölçüler:23.9cm (L) x 19.5cm (W) x 11.8cm (H)Ağırlık:2400 GramGPS:1575.42 MHz GPS L1 Radio bandEthernet Portları:PoE Girişi: 10/100/1000Base-T 802.3, 802.3u, 802.3ab, 802.3at/af PoE PD Input up to 40W with high power PoE injector
Jumbo frame support (2000 byte MTU)
PoE Çıkışı: 10/100/1000Base-T 802.3,802.3u, 802.3ab, 802.3at/af PoE PSE Output up to 25W
Jumbo frame support (2000 byte MTU)Çevresel Şartlar:Çalışma Sıcaklığı:-40°c – 65°c
